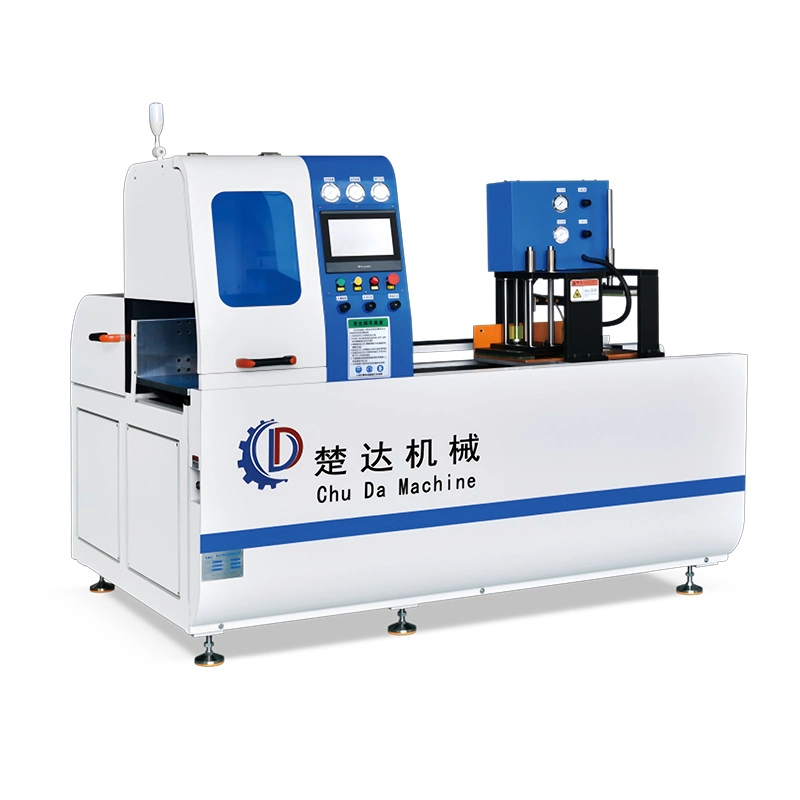

Separate Automatic Saw CD-550 For Cutting Large Materials
The equipment is a precision CNC automatic feeding saw, designed with a stable, high-precision, and highefficiency structure from back to front Cutting method, suitable for cutting larger materials, adopts a direct connection design, with the motor directly connected to the saw blade, Reduce mechanical vibration and tool oscillation, and ensure a smooth and burr free cutting material surface.
5.0
Machine model:
CD-550
Cutting length:
10～850mm(Recyclable feeding)
Cutting width and height:
W330mm H170mm
Motor power:
7.5KW
The size of the saw blade:
φ405～φ550
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Features
● Adopting a separated design, the saw blade and material are separated left and right after cutting, reducing material friction and The lifespan of the saw blade also avoids scratching the cut end face, ensuring that the cut aluminum end face is smooth and free of burrs.
● The overall welded bed body undergoes multiple heat treatment and annealing processes to eliminate stress and prevent deformation during long-term operation of the frame. The structure is more robust, effectively extending the service life of the equipment.
● Adopting advanced touch screen and software design, it is easy to operate and can meet the diverse sawing and automation needs of usersSeamless integration of production lines.
● Adopting micro lubrication, centralized atomization, and rapid cooling of blades, the blade life is increased by 30% compared to traditional cutting machines The above reduces fuel consumption costs, is environmentally friendly and pollution-free, has smooth workpiece surfaces, and has a long system service life
Intelligent
Precise
Efficient
Stable
CD-550 - 副本
550-1
550-2
Technical Parameter
| Machine model | CD 550 |
| Cutting length | 10～850mm（Recyclable feeding） |
| Cutting width and height | W330mm H170mm |
| Motor power | 7.5KW |
| The size of the saw blade | φ405～φ550 |
| Motor speed | 3000r/min |
| Accuracy of motor spindle | 0.005mm |
| Cutting precision | ±0.1mm |
| Working air pressure | 0.4~0.8Mpa |
| Working voltage | 380V/50Hz |
| Mechanical size | 2300X1650X1700mm |
| Mechanical weight | 1550kg |
