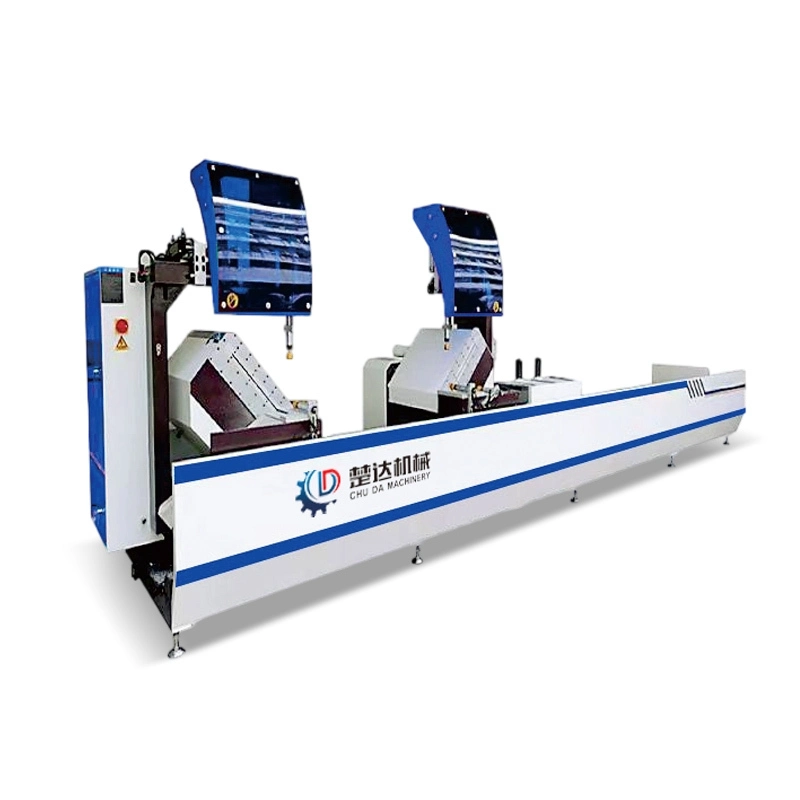

CNC Arbitrary Angle Saw CD-650

Used for cutting industrial profiles, curtain walls, doors and windows, plastic steel, aluminum wood composite materials, etc., using hard alloy saw blades, High cutting precision.

Machine model:

CD-650

Cutting length:

6200mm(Recyclable feeding)

Cutting width and height:

W150mm H200mm

Motor power:

4KWx2

The size of the saw blade:

φ550

Inquiry

Write a Review

Product Features

● Two saw blades can simultaneously cut different angles and can be used for single head cutting.

● The main technical parameter equipment is a CNC double head saw, designed to use a stable and efficient cutting method from back to front. Adopting a direct connection design, the motor is directly connected to the saw blade, without the need to replace the belt, reducing machine vibration and tool swing, High cutting accuracy and good stability. Adopt linear guide rails, ensure minimal machine vibration during cutting, and cut profiles The surface is smooth and free of burrs.

● Adopt bus PLC machine control, touch screen display, and the operator inputs the processing dimensions on the touch screen, Adopting servo feed and CNC swing angle, it can automatically feed and rotate the cutting angle to simultaneously cut 35°and 150°.

Intelligent

Precise

Efficient

Stable

主图模板 (3)

Cutting Material Display

第9页-46

第9页-47

Technical Parameter

Machine model	CD 650
Cutting length	6200mm(Recyclable feeding)
Cutting width and height	W150mm H200mm
Motor power	4KWx2
The size of the saw blade	φ550
Motor speed	3000r/min
Cutting angle range	35°～150°
Cutting precision	±0.15mm
Working air pressure	0.4～0.8Mpa
Working voltage	380V/50Hz
Mechanical size	6870x1520x1650mm
Mechanical weight	3200kg
