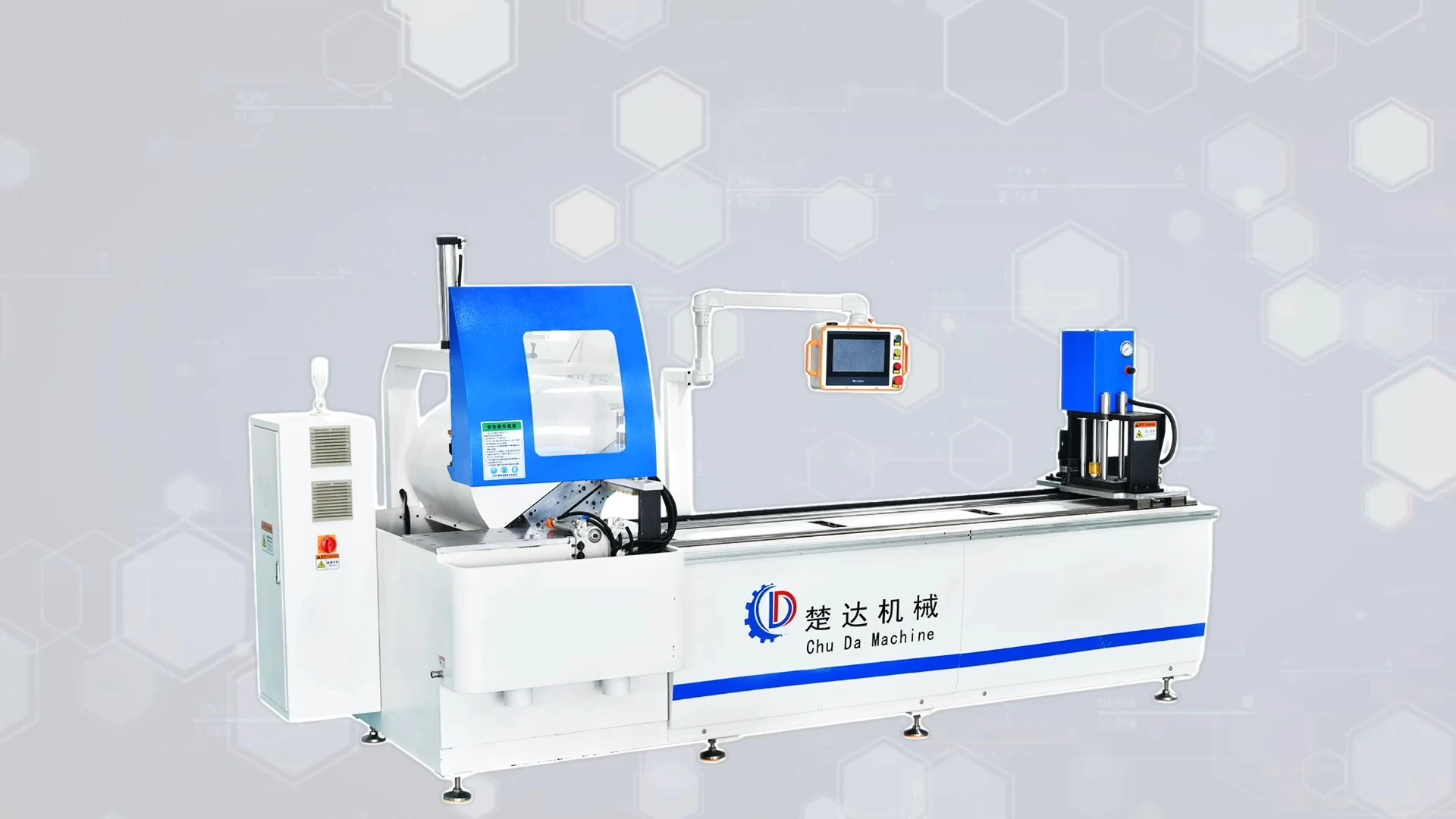

CNC Multi-Angle Saw with Recirculating Feed System CD-560L 1
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 2
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 3
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 4
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 5
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 1
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 2
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 3
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 4
CNC Multi-Angle Saw with Recirculating Feed System CD-560L 5

CNC Multi-Angle Saw with Recirculating Feed System CD-560L

Wide range of cutting angles: can be freely adjusted between 35 degrees and 145 degrees, meeting the cutting needs of various special angles, Suitable for cutting materials of different shapes and specifications.
5.0
Machine model:
CD-560L
Cutting length:
10~1500mm(Recyclable feeding)
Cutting width and height:
W180mm H200mm
Motor power:
7.5KW
The size of the saw blade:
φ405~φ700
design customization

    oops...!

    no product data.

    Go to homepage

    Product Features

    ● Wide range of cutting angles: can be freely adjusted between 35 degrees and 145 degrees, meeting the cutting needs of various special angles, Suitable for cutting materials of different shapes and specifications.

    ● Good cutting quality: The cutting process is stable, the cutting surface is smooth and free of burrs, and there is no need for secondary processing, which can effectively improve productionEfficiency and product quality.

    ● High degree of automation: Equipped with an independent CNC display screen, it can automatically feed and cut materials, and also comes with upper and side pressing materials Function, simple and convenient operation, reduces manual labor intensity.

    ● High swing angle efficiency: Using servo motors for swing angle not only ensures the accuracy of angle switching, but also improves the swing angle Efficiency, can quickly switch between different angles to achieve efficient production.

    ● Long feeding stroke: It has the function of cyclic feeding, with a feeding stroke of up to 1500mm, and can be continuously cut, reducing feedingThe frequency has increased the cutting efficiency.

    ● Reasonable structural design: Based on ergonomics design, it is easy to operate and has strong equipment stability. At the same time, there is also a closed areaThe protective door can effectively prevent debris splashing during the cutting process, ensuring the safety of operators.

    CNC Multi-Angle Saw with Recirculating Feed System CD-560L 6
    Intelligent
    undefined
    Precise
    undefined
    Efficient
    undefined
    Stable
    CD-560L-1 - 副本
    CD-560L-1 - 副本

    Cutting Material Display


    560L-2
    560L-2
    560L-1
    560L-1

    Technical Parameter

    Machine modelCD 560L
    Cutting length10~1500mm(Recyclable feeding)
    Cutting width and heightW180mm H200mm
    Motor power7.5KW
    The size of the saw bladeφ405~φ700
    Motor speed1500~3500r/min
    Cutting angle range35°~145°
    Cutting precision±0.15mm
    Working air pressure0.4~0.8Mpa
    Working voltage380V/50Hz
    Mechanical size3050X1820X1800mm
    Mechanical weight2400kg
