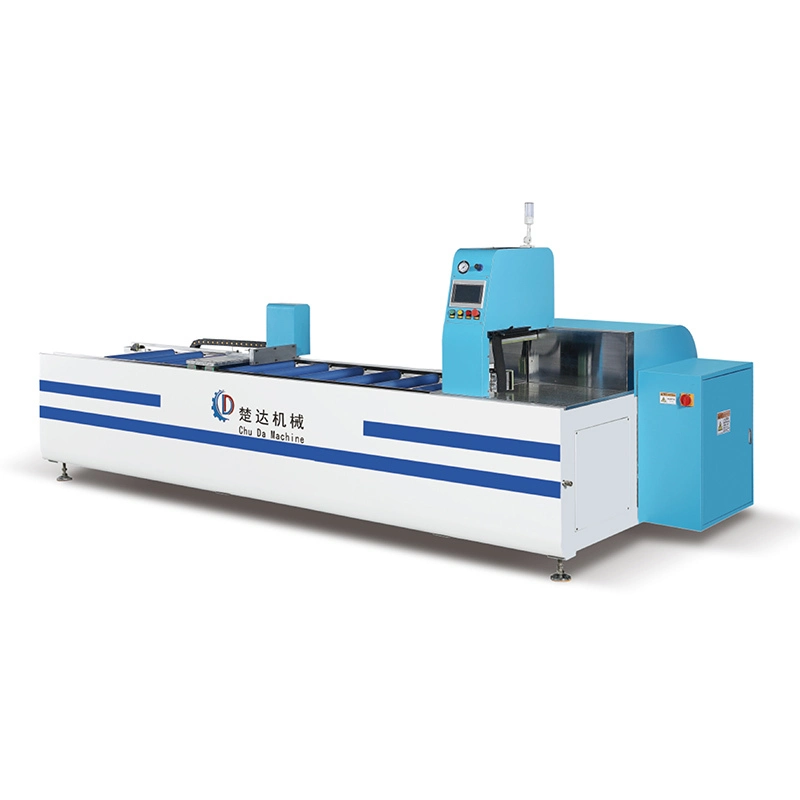

CNC Precision Positioning Saw CD-580

Adopting a motor feed and paired with a high-end brand PLC controller, the cutting feed is more stable. Manual feeding and configuration of CNC positioning frame to achieve 90 degree cutting of multiple or single materials.

Machine model:

CD-580

Cutting width and height:

W480mm H200mm

Motor power:

7.5KW～15KW

The size of the saw blade:

φ405～φ600

Inquiry

Write a Review

Product Features

● Adopting a motor feed and paired with a high-end brand PLC controller, the cutting feed is more stable.

● Manually feed and configure positioning frames to achieve 90 degree cutting of multiple or single materials.

● Adopting a direct connection design, the motor is directly connected to the saw blade, reducing mechanical vibration andThe swinging of the cutting tool ensures a smooth and burr free surface of the cutting material.

● Equipped with an automatic recycling device for aluminum shavings, which can automatically collect aluminum shavings, dust, etc. during the cutting process, Reduce workshop pollution from the source, making it easier to maintain a clean and tidy working environment, in line with workshop 5S Environmental management requirements such as organization, rectification, cleaning, cleanliness, and literacy.

Intelligent

Precise

Efficient

Stable

CD-580 (2)

Cutting Material Display

480-1

Technical Parameter

Machine model	CD 580
Material positioning length	70～3000mm(Customizable length)
Cutting width and height	W480mm H200mm
Motor power	7.5KW～15KW
The size of the saw blade	φ405～φ600
Motor speed	3000r/min
Accuracy of motor spindle	0.005mm
Cutting precision	±0.1mm
Working air pressure	0.4～0.8Mpa
Working voltage	380V/50Hz
Mechanical size	4200X1720X1800mm
Mechanical weight	2800kg
