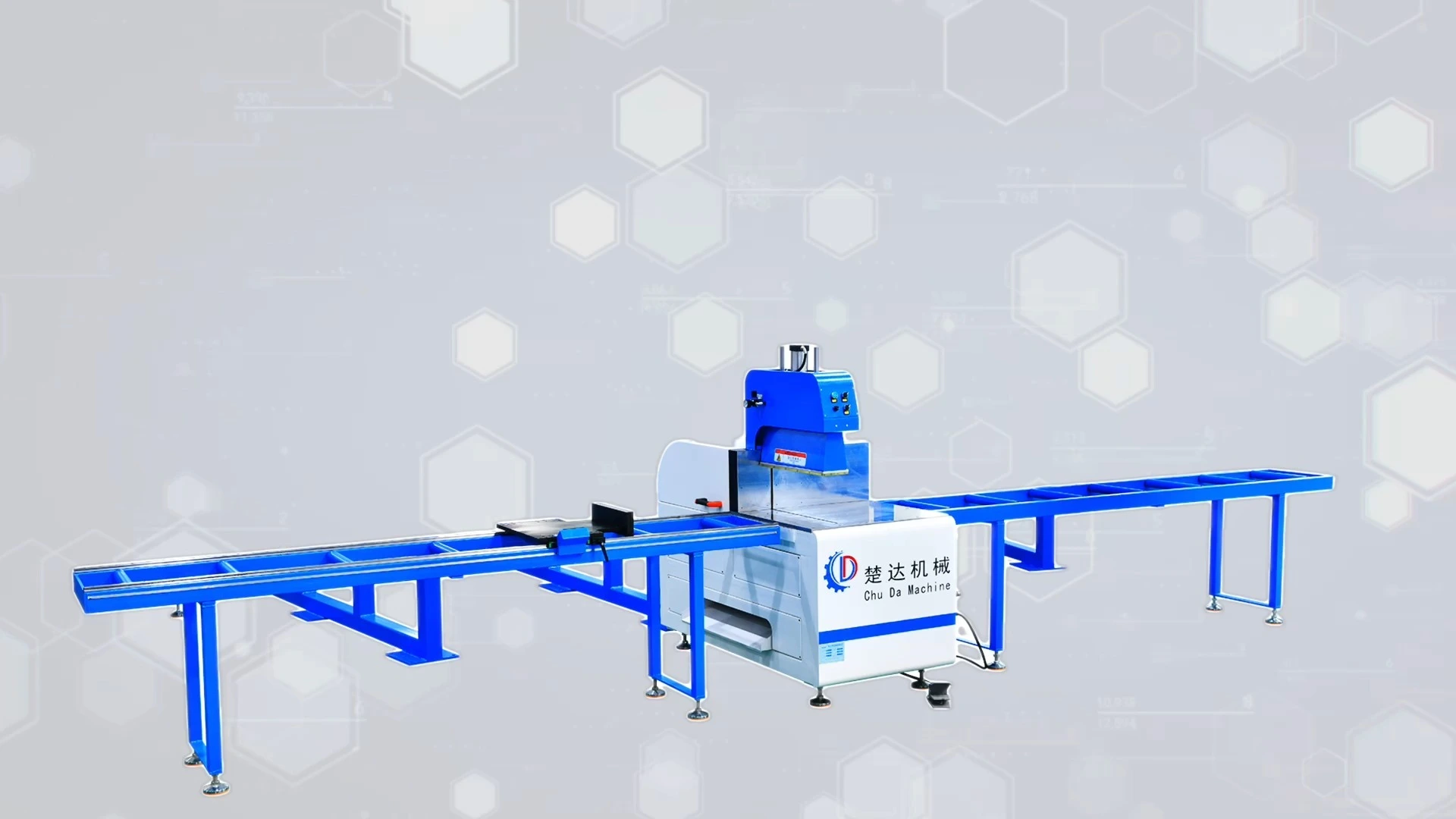

Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480 1

Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480 2

Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480 3

Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480 4

Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480 5

Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480 6

Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480

Name: Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480
Uploaded: 2025-09-22T17:49:08+08:00
Description: Designed for efficient and precise aluminum cutting, the CD-480 features an integrated spindle cutting motor with direct-drive transmission, enabling precise control of rotational speed. This ensures stable and powerful cutting performance, improving both cutting stability and quality.

Designed for efficient and precise aluminum cutting, the CD-480 features an integrated spindle cutting motor with direct-drive transmission, enabling precise control of rotational speed. This ensures stable and powerful cutting performance, improving both cutting stability and quality.

Equipped with dual linear guides, it maximizes the straightness of the blade's movement, achieving high-precision cuts with smooth, burr-free surfaces. This reduces the need for secondary processing, lowering production costs while meeting strict precision requirements in various industrial applications.

Machine model:

CD-480

Cutting width and height:

W420mm H170mm(Customizable)

Motor power:

7.5KW

The size of the saw blade:

φ405～φ550

Inquiry

Write a Review

Product Features

● Adopting a motor feed and paired with a high-end brand PLC controller, the cutting feed is more stable.

● Manually feed and configure positioning frames to achieve 90 degree cutting of multiple or single materials.

● Adopting a direct connection design, the motor is directly connected to the saw blade, reducing mechanical vibration andThe swinging of the cutting tool ensures a smooth and burr free surface of the cutting material.

● Equipped with an automatic recycling device for aluminum shavings, which can automatically collect aluminum shavings, dust, etc. during the cutting process, Reduce workshop pollution from the source, making it easier to maintain a clean and tidy working environment, in line with workshop 5S Environmental management requirements such as organization, rectification, cleaning, cleanliness, and literacy.

Semi Automatic Precision Aluminum Cutting Machine With Dual Linear Guides CD-480 7

Intelligent

Precise

Efficient

Stable

cd 480 1 (3)

Cutting Material Display

480-1

Technical Parameter

Machine model	CD 480
Positioning length	70～3500mm(Customizable)
Cutting width and height	W420mm H170mm(Customizable)
Motor power	7.5KW
The size of the saw blade	φ405～φ550
Motor speed	3000r/min
Accuracy of motor spindle	0.005mm
Cutting precision	±0.1mm
Working air pressure	0.4～0.8Mpa
Working voltage	380V/50Hz
Mechanical size	6500X1600X1700mm
Mechanical weight	780kg

11 (2)

Auxiliary Configurations

3-meter material rack & positioning frame for easy loading and precise alignment. Micro-spray cooling & lubrication to extend blade life. Large chuck design for minimal vibration, enhanced stability, and secure material clamping.

Wide Applications

From aluminum profile processing to new energy and industrial heat sink production, the CD-480 Semi-Automatic Precision Cutting Machine delivers outstanding performance, helping businesses enhance production efficiency.
