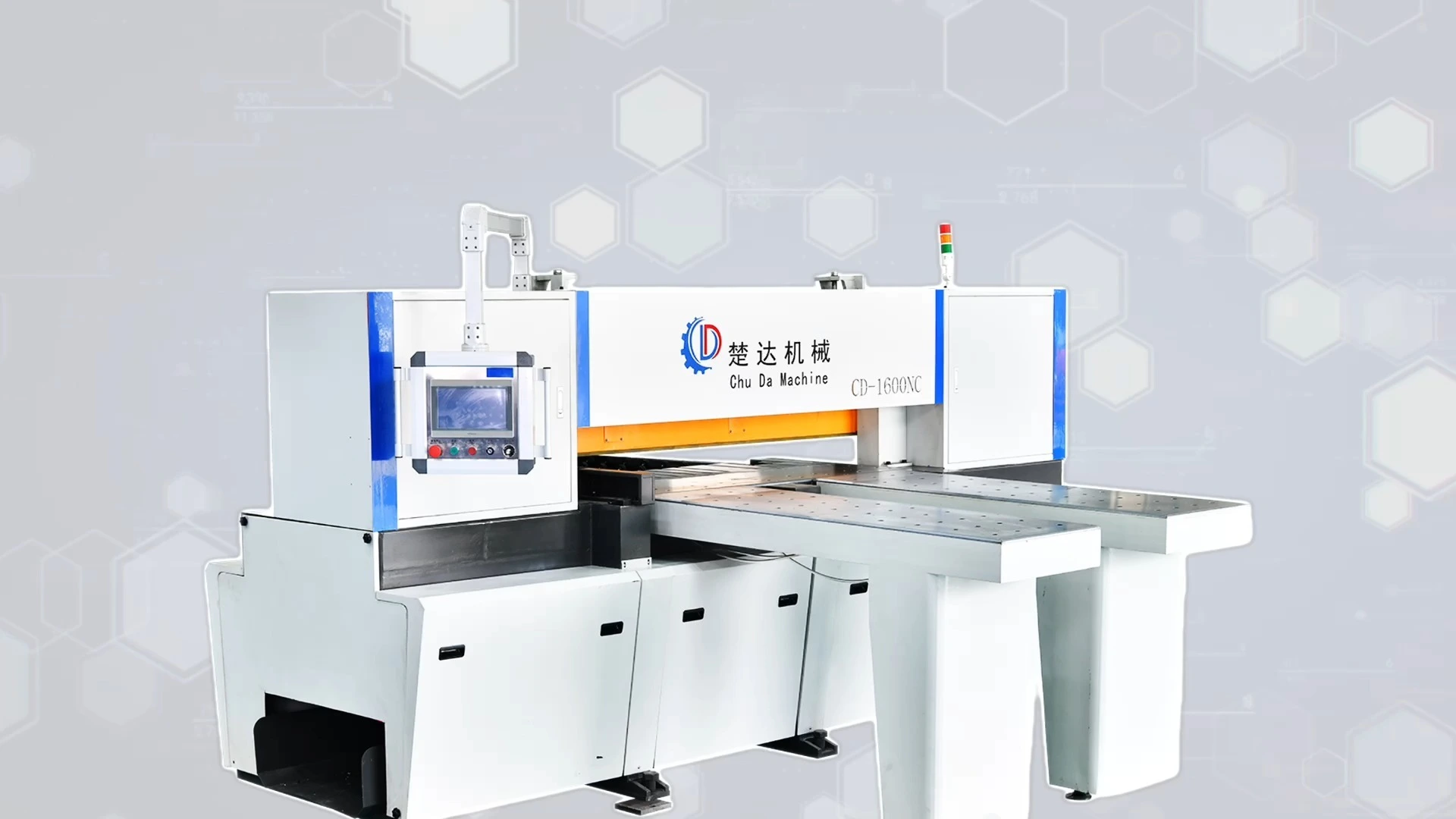

Semi-automatic Aluminum Plate Saw CD-1600
The forward and backward movement of the saw blade is driven by servo driven grinding gear transmission. The sawing width can be adjusted arbitrarily.
Adopting micro lubrication and centralized atomization for rapid cooling of blades, compared to traditional cutting machines, the blade life is increased by more than 30% and reduced fuel consumption cost, environmentally friendly and pollution-free, smooth workpiece surface, and long system service life.
5.0
Machine model:
CD-1600
Cutting width and height:
W1600mm H150mm(Customizable widening and raising)
Motor power:
7.5KW～15KW
The size of the saw blade:
φ405～φ500
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Features
● Knife Head Lifting: The knife head lifting adopts a high-strength precision linear sliding rail configuration with a centralized pneumatic unit to ensure that the sawing material is vertical stability of degree and blade operation, automatic height control function added to the blade head, which can be automatically adjusted according to the set material thickness the lifting height of the blade head reduces saw blade wear, saves blade lifting time, improves processing efficiency, and ensures a certain height the blade teeth are exposed on the surface of the material, providing sufficient cooling environment for the blade teeth during high-speed cutting.
● High Cutting Accuracy: Typically equipped with advanced cnc systems, it can precisely control the cutting path and ensure accurate cutting dimensions. Its saw blade rotates at high speed and has good stability, enabling high-precision cutting. The cutting surface is flat, smooth, and free of burrs, reduce secondary processing.
● The overall welded bed body undergoes multiple heat treatment and annealing processes to eliminate stress and prevent deformation during long-term operation of the frame.
Intelligent
Precise
Efficient
Stable
第14页-62
第14页-61
第14页-60
Technical Parameter
| Machine model | CD 1600 |
| Cutting width and height | W1600mm H150mm(Customizable widening and raising) |
| Motor power | 7.5KW～15KW |
| The size of the saw blade | φ405～φ500 |
| Motor speed | 1500～3500r/min |
| Accuracy of motor spindle | 0.005mm |
| Cutting precision | ±0.2mm |
| Working air pressure | 0.4～0.8Mpa |
| Working voltage | 380V/50Hz |
| Mechanical size | 1105x2800x1750mm |
| Mechanical weight | 2650kg |
