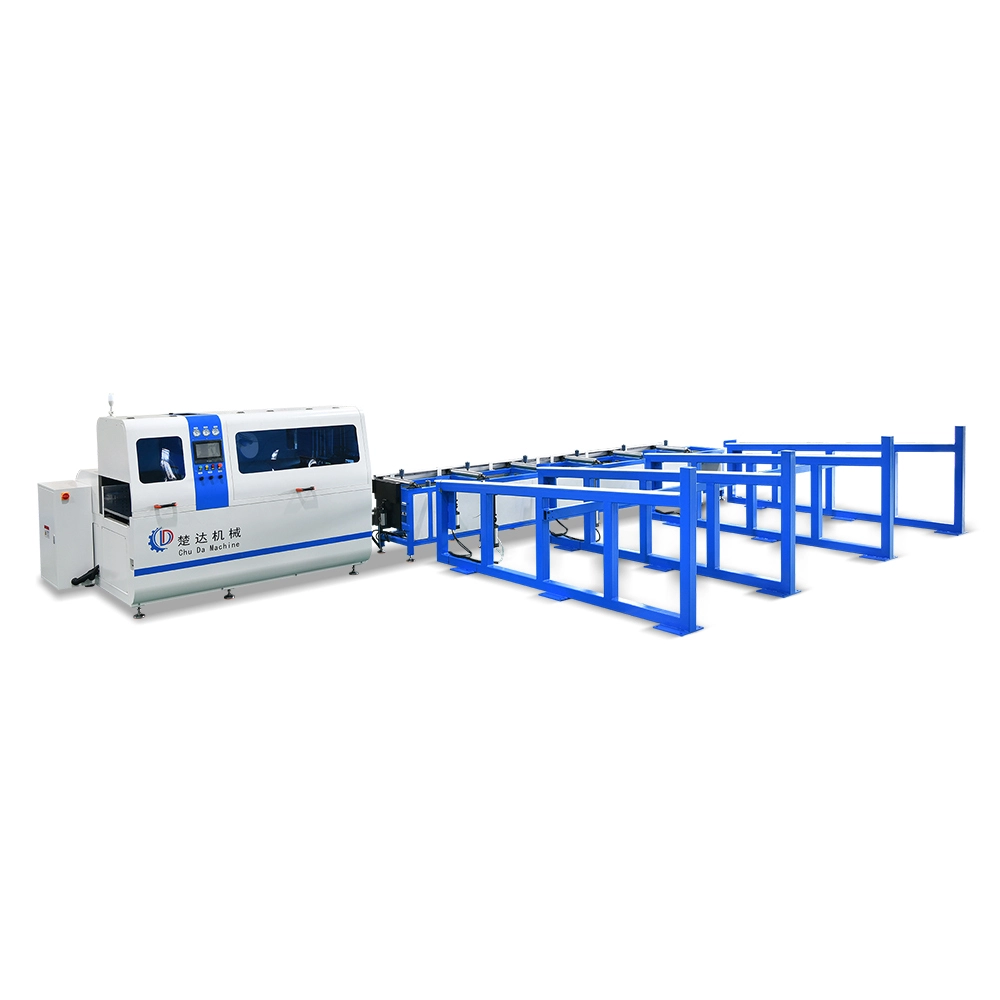

Fully automatic aluminum bar cutting machine line CD-620L
Full process automation: It can achieve a series of operations such as automatic loading and unloading, automatic feeding, and automatic cutting to length, From raw materials to finished products, there is no need for excessive manual intervention, improving production efficiency and saving labor costs.
5.0
Machine model:
CD-620L
Cutting length:
10～1100mm(Recyclable feeding)
Cutting width and height:
W460mm H210mm
Motor power:
15KW～21KW
The size of the saw blade:
φ405~φ650
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Features
● High cutting accuracy: Advanced CNC system is adopted, which can accurately control the motion trajectory of the cutting tool, Ensure consistency in product cutting.
● High material utilization rate: The tail material can be controlled in a shorter length, reducing material waste, especially suitable for batch processing, Can effectively reduce production costs.
● Good cutting quality: Adopting automatic double separation cutting to avoid scratching the workpiece with the return blade and reduce saw blade wear, The cutting surface is flat, smooth, and free of burrs, which can reduce subsequent polishing and other processing steps.
Intelligent
Precise
Efficient
Stable
a-CD-620L
第16页-68
第16页-67
Technical Parameter
| Machine model | CD 620L |
| Cutting length | 10～1100mm(Recyclable feeding) |
| Cutting width and height | W460mm H210mm |
| Motor power | 15KW～21KW |
| The size of the saw blade | φ405~φ650 |
| Motor speed | 1500～3500r/min |
| Accuracy of motor spindle | 0.005mm |
| Cutting precision | ±0.1mm |
| Working air pressure | 0.4～0.8Mpa |
| Working voltage | 380V/50Hz |
| Mechanical size | 3050X1820X1800mm |
| Mechanical weight | 3800kg |
