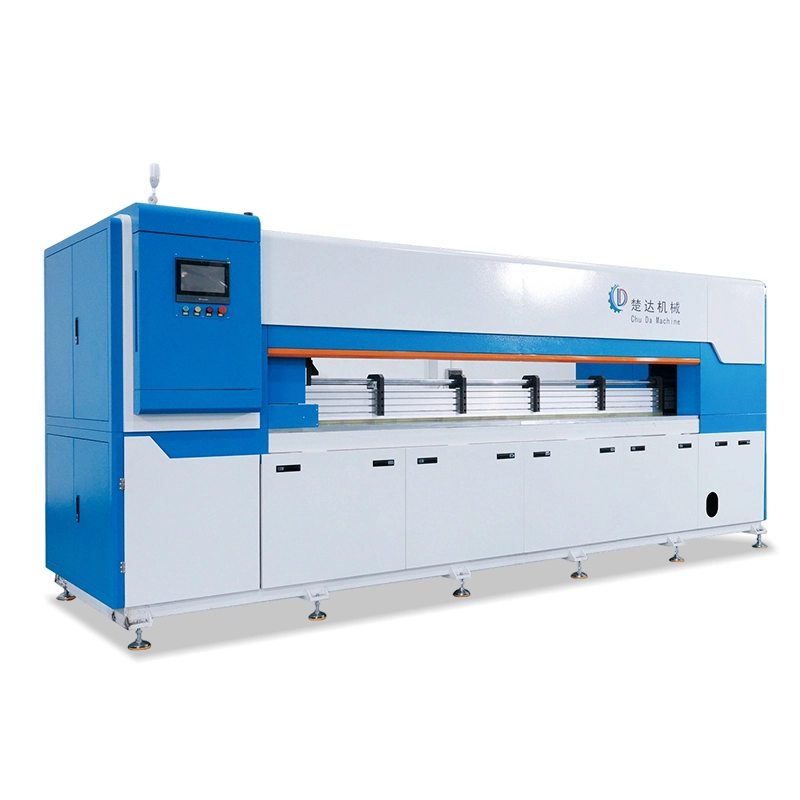

CNC Precision Aluminum Plate Saw CD-3200
The overall welded bed body undergoes multiple heat treatment and annealing processes to eliminate stress and prevent deformation during long-term operation of the frame. Saw seat feed speed: driven by servo motor, cutting 100mm thick aluminum plate at a rate of 1 meter per minute. Material clamping mechanism: using pneumatic clamping, the clamping claws are equipped with film to protect the workpiece from being clamped.
5.0
Machine model:
CD-3200
Cutting length:
10～3000mm(Customizable)
Cutting width and height:
W3200mm W160mm(Customizable widening and raising)
Motor power:
15KW～21KW
The size of the saw blade:
φ405～φ550
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Features
● Automatic feeding, automatic sawing, spindle lifting and horizontal feeding, variable frequency drive can adjust the saw blade speed freely, and different sizes of saw blades can be replaced to reduce costs.
● Knife Head Lifting: The knife head lifting adopts a high-strength precision linear sliding rail configuration with a centralized pneumatic unit to ensure the verticality of the sawing material and the stability of the blade operation, Add automatic height control function to the blade head, which can automatically adjust the lifting height of the blade head according to the set material thickness, reduce saw blade wear, and save blade lifting time, Improve processing efficiency while ensuring a certain height of exposed teeth on the material surface, providing sufficient cooling environment for the teeth during high-speed cutting.
● Adopting micro lubrication, centralized atomization, and rapid cooling of blades, compared to traditional cutting machines, the blade life is increased by more than 30%, reducing fuel consumption costs, and being environmentally friendly and pollution-free. The workpiece has a smooth cutting surface, and the system has a long service life.
Intelligent
Precise
Efficient
Stable
主图模板 (5)
第13页-59
第13页-58
Technical Parameter
| Machine model | CD 3200 |
| Cutting length | 10～3000mm (Customizable) |
| Cutting width and height | W3200mm W160mm (Customizable widening and raising) |
| Motor power | 15KW～21KW |
| The size of the saw blade | φ405～φ550 |
| Motor speed | 1500～3500r/min |
| Accuracy of motor spindle | 0.005mm |
| Cutting precision | ±0.2mm |
| Working air pressure | 0.4～0.8Mpa |
| Working voltage | 380V/50Hz |
| Mechanical size | 5800x5580X1800mm |
| Mechanical weight | 5800kg |
